What Is a Hydraulic Hose Fitting?
A hydraulic hose fitting is a connector used to join hydraulic hoses with other system components such as pumps, valves, or cylinders. Its main function is to ensure secure, leak-free connections and maintain stable fluid flow under high pressure within the hydraulic system.
In industrial operations, hydraulic fittings play a crucial role in maintaining system performance and safety. Poor-quality fittings can cause leaks, pressure drops, or even damage to critical components.
Benefits of Using High-Quality Hydraulic Hose Fittings
Using the right type of hydraulic hose fitting provides multiple operational advantages:
-
Prevents system leakage through precise and durable connections.
-
Extends hydraulic system lifespan by maintaining consistent pressure.
-
Improves operational efficiency in heavy equipment and machinery.
-
Simplifies maintenance and component replacement with modular designs.
-
Ensures workplace safety with strong, pressure-resistant joints.
Types of Hydraulic Hose Fittings
Hydraulic fittings come in a wide variety of types and sizes to match system design and pressure requirements. Common types include:
1. Based on Connection Shape
-
Straight Fitting: For inline connections.
-

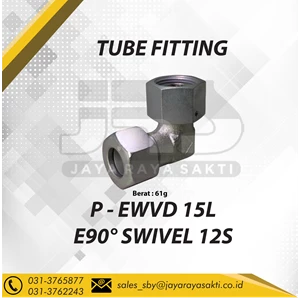

Elbow Fitting (45°/90°): Used to change fluid flow direction.
-
Tee Fitting: Divides the flow into three directions.
-
Cross Fitting: Distributes fluid into four different lines.
2. Based on Thread Type
-
BSP (British Standard Pipe)
-
JIC (Joint Industry Council)
-
NPT (National Pipe Tapered)
-
Metric Thread
3. Based on Installation Method
Recommended Applications of Hydraulic Hose Fittings
Hydraulic fittings are widely used in industries that depend on high-pressure systems, including:
-
Automotive Industry: Brake and power steering systems.
-
Construction Equipment: Excavators, cranes, and bulldozers.
-
Agriculture: Tractors, sprayers, and harvest machinery.
-
Mining & Energy: Drilling rigs, pumps, and lubrication systems.
-
Manufacturing: Automated production lines and hydraulic presses.
Choosing the right fitting ensures system durability, efficiency, and safety in demanding industrial conditions.
Tips & Selection Guide for Hydraulic Hose Fittings
Before selecting or installing hydraulic fittings, consider the following key points to ensure optimal performance:
1. Match Operating Pressure
Choose fittings rated equal to or higher than your system’s working pressure.
2. Select the Right Material
Use stainless steel for corrosive environments or carbon steel for high-pressure applications.
3. Check Thread Type and Size
Always ensure thread compatibility to prevent leaks or connection failures.
4. Choose Reliable Suppliers
Use fittings from CV. Jaya Raya Sakti, a trusted provider of hydraulic and pneumatic components built to meet industrial standards.
Find the ideal hydraulic hose fitting and hydraulic hose for your industrial application with CV. Jaya Raya Sakti.
Our team is ready to help you achieve efficient, reliable, and safe hydraulic performance.
